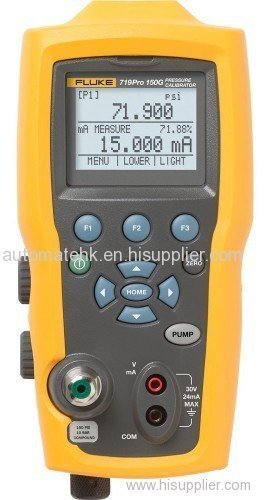

The 719Pro includes a full functioning

loop calibrator that sources, simulates

and measures mA signals and more.

The large backlit screen displays three

parameters at once:

• Pressure measurement from internal or

external sensor

• Sourced/simulated or measured mA

values

• Temperature measured by optional

RTD probe

• Unique integrated electric pump for

one handed pressure calibration

• Test pressure switches easily with

easy-to-use switch test function

• Precision pressure adjust vernier for

easy and accurate pressure calibration

• Ideal accuracy and performance

(0.025 %) for reference class

transmitter calibration

• 30 PSI, 150 PSI and the new 300 PSI

pressure ranges

• Programmable pressure calibrator

pump limit:

– eliminates over-pressurization

– allows the user to program target

pressures for pumping

• Extended pressure measurement

range with any of 29 700Pxx Pressure

Modules

• Pump cleanout ports reduce pump

failures from moisture and fluid

damage

• Fluid trap included with the unit to

mitigate chance of fluid damage in

at-risk applications

• Precision temperature measurement

with optional RTD probe
